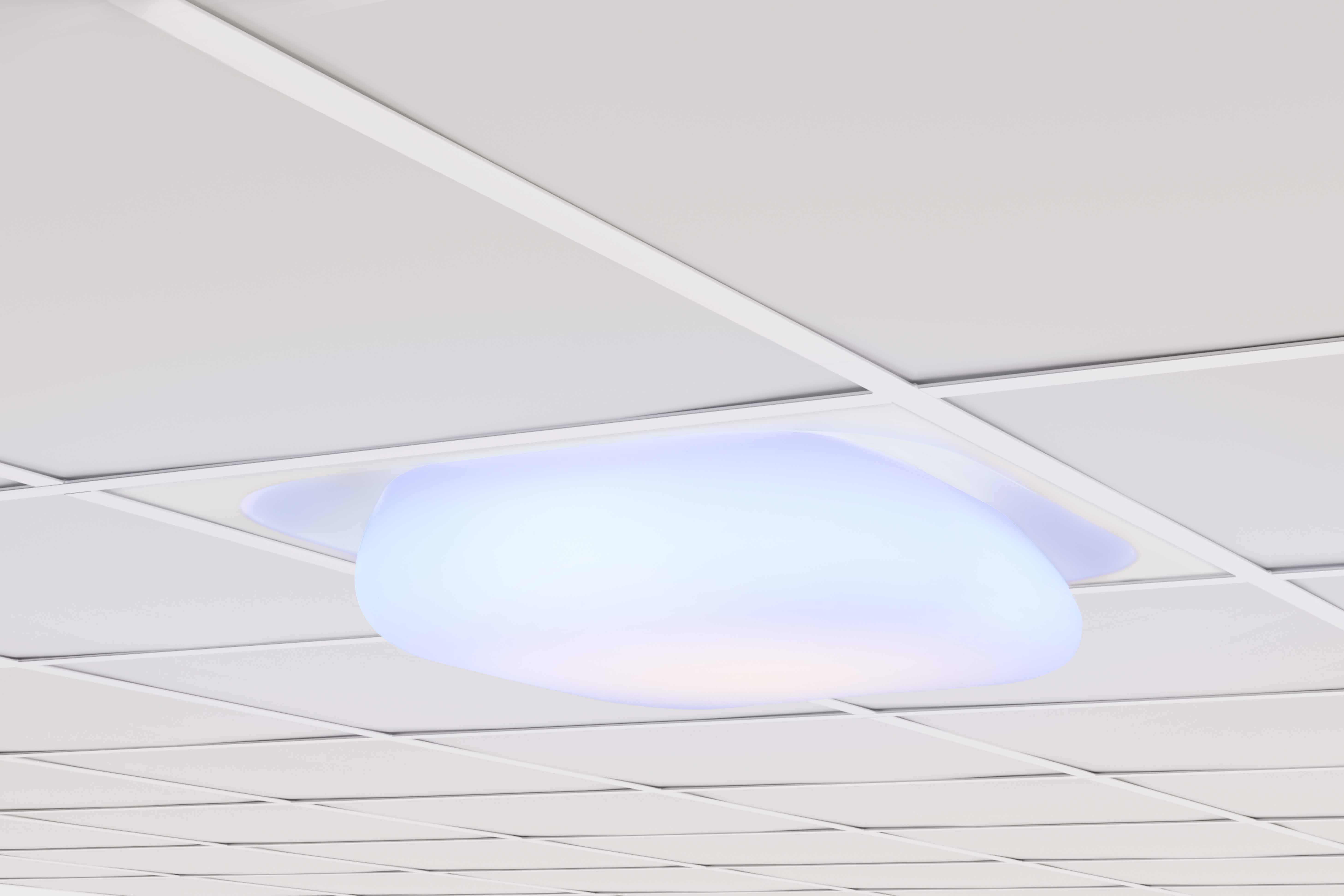

Sky view Tile installed in an office ceiling

SkyView™ Tile

Introducing the SkyView™ Tile by BIOS Lighting. SkyView represents the next generation of circadian lighting solutions designed to support the human circadian system during the daytime and evening hours. SkyView™ is a groundbreaking light that can deliver the targeted M-EDI of 250 lux on the vertical plane of the eye, as recommended by both the WELL building standard and RP-46-23 from the IES. It’s the only luminaire on the market that provides truly immersive circadian lighting while meeting North America’s most stringent energy codes. The SkyView™ Tile has two versions: Daylight 0-10V or Daylight and Evening, which can be operated via 0-10V or DALI protocol.


 SKYVIEW™ LIGHTING SYSTEM FEATURES:

  • Offers the highest melanopic ratio of lighting on the market today: 1.4 in daytime mode
  • Strengthens circadian rhythms through an electric circadian lighting system with patented GCO™ (Gradient Circadian Optimization) Technology, providing the health benefits of natural sunlight indoors
  • Volumetric light distribution maintains uniformity ratios of <2:1
  • Proven to increase alertness
  • Enhances productivity by up to 12.5%
  • Boosts mood and focus among occupants
  • 0.4 W/fton a 10 x 10 grid
  • Quick Ship Available on the Daylight Version



Characteristics SkyView™ Tile Performance specifications Daytime
Lamp Type (included) BIOS LED Average vertical melanopic equivalent daylight illuminance (m-EDI) witd Tile @ 10' OC Spacing 250 lx
Fixture Material Steel Average Circadian Stimulus (CS) witd Tile @ 10' OC Spacing 0.35
Diffuser Material LLDPE Plastic Daytime melanopic daylight efficiency ratio (m-DER) (vertical) 1.4
Power (w) Consumption 38W @ 4,000 lumens Daytime light output (lumens) 4,000 Lm
Operating Voltage 120 - 277 V Dimmable Yes
Color Rendering Index (CRI) 90+R9 >82
